BITX VERSION 3 TCVR KIT WITH CASE

Complete Kit with LCD Frequency Counter -Components and Case

About Bitx

Bitx is an easily assembled ssb transceiver for all bands and for the Amateur Radio Operator-Hams, with very clean performance.Hams can home-brew the QRP TCVR by Using ordinary electronic components.

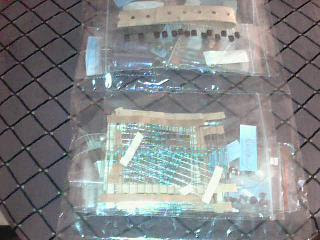

                                        Bitx Components

                              Bitx Connectors and heat sinks

                                              Bitx Coils

                                                                  Bitx Front View

                                                                 Bitx Rare View

                                           Bitx Side  View

                                                          Bitx Case Inside View

                                                           Bitx Case

Size :
Length 9.5 Inches
Width 8.5  Inches
Height 4    Inches

LIST Of Parts With Bitx Case

2 10K POTS
2 100K POTS
MIC CONNECTOR MALE
FEMALE HEAD PHONE JACK
CHROME LED HLODERS
RIT SWITCH
4 SMALL KNOBS & 1 LARGE ONE
SPEAKER
POWER SWITCH
FUSE HOLDER

LIST OF COMPONENST FOR BITX KIT

CAPACITORS
0.001u 2
0.1u 44
100p 3
10p 2
15p 2
2.2p 2
220p 5
560p 3
39p 3
elec 1u 2
elec 50u 6
elec 220uf 2
elec 2200uf 50v 2
var 22p 3
var50pf 1

RESISTORS 1/4W
6.2 1
10 9
22 3
56 1
100 13
220 14
470 3
47K 1
10k 4
120k 2
1k 14
220k 1
2k2 11
4k7 3 1
lin 10k 2

XTAL
10MHz 5

TRANSISTOR
2N3904 14

IRF510 1
2N2219 1

IC
LM386-N1 1

DIODES
zener 36V 1
zener 9.1V 1
zener 5.6V 1
1N4148 13

TRANSFORMERS
INDUCTORS

T37-6 3
T37-43 7
Ferrite Beads 1
Band Pass Coils 3 Metal 2 extra sent for using as cover in mixer and BM

OTHER
Microphone 1
Loudspeaker 8ohm 1
Relay 12V 3 vie

Complete Parts for a Frequecy Counter IK3OIL FLL

With LCD .Pic 16f628 And Parts

FLL FReq counter

YOU GET PARTS AND PCB FOR FRQ COUNTER



                                                     The delivery time is 7 to 10 days


                 The Complete Kit is sent by Registered Parcel By

                                   Indian Postal Services

Bitx In Japan & Brazil

In the last two months there was a lot of interest developed by Japanese Hams for the Bitx Version 3 Kit, and a few kits were shipped. I would be anxious to have any updates and post them on CQ BITX
Our friend from Brazil Om Celso is a very keen home brewer and has already started his Bitx. I congratulate PY2FDX Celso from Brazil and posting some pictures which he has been kind in sending.
